| Cutting Bridge Saw |
|
Isimar Bridge Saw |
|
 |
|
text data |
|
______________________________________________________________ |
|

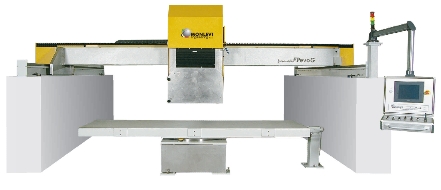

Monleivie Engineering Bridge |
|
 |
|
FPevoG (Cutting Bridge Saw).
The FPevoG Cutting Bridge Saw for Cutting Marble, Granite and
Stone Slabs. Its totally built with Normalized and Stabilized
steel to avoid any kind of inaccurate cutting lines.
Special Features:
Slide for blade lowering.
Tilting & rotating Hydraulic working table (option).
5th Axis that allows the working table to turn automatically
using a self breaking gear (option).
Automatic motorized with fixed head. (option)
Laser (option).
Tilting Head.
FPevoG Techincal DATA
|
Working Size |
mm 3500x3500 / 12x12ft |
|
Spindle Head |
KW 15 / HP 20 |
|
Spindle Head Speed |
RPM 700 / 12800 |
|
Installed Power |
KW 20 / HP 27 |
|
Head Rotation |
0/90 C |
|
Table Size |
1800x3500 mm / 6x11.5 ft |
|
Machine weight |
5000 kg / 11,023 LB |
|
Machine Size |
6200x5000x3000mm / 20x16.5x10 ft |
|
|
______________________________________________________________ |
|

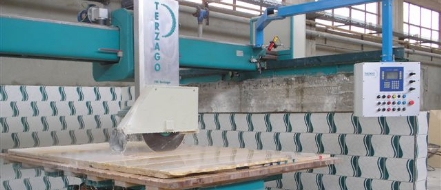

Terzgo Bridge Cutting Saw |
|
 |
|
text data
|
|
______________________________________________________________ |
|

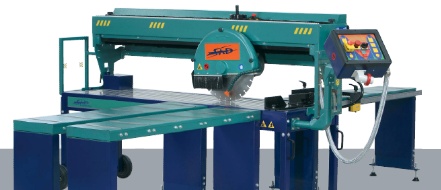

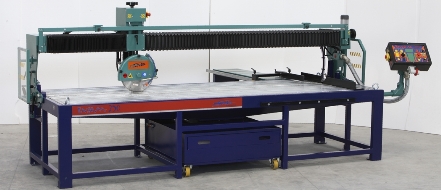

Compact cutting saw |
|
 |
|
1 TRACTION MANUAL: quick cut
operation
(suitable for small sizes such as 70, 90 and 105) at manual
functioning through low tension handgripp.
.
2 TRACTION AND SCREW MANUAL M :
cut operation as previous one with the possibility to use a
"SCREW" control so as to make the feeding more constant and
execute workings when the handgripp is far from the operator
(suitable for medium/big sizes such as 130, 160, 175 and 200).
3 AUTOMATIC "A" (150A, 175A and 200A) with motorized
feeding and speed regulation from control panel and "SCREW"
auxiliary control for difficult cuts, changeable thickness and
so on...
|
|
_____________________________________________________________ |
|
Hummar Cutting Bridge Saw |
|
text data
|
|
|
|
|
