Construction:

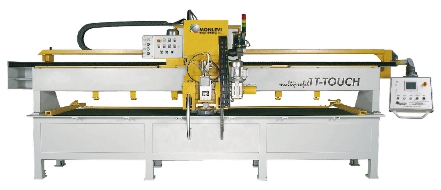

1T-TOUCH Edge Profiling Machine is sold &
serviced in North America by UMT Tech & manufactured by Monlevi
Engineering in Italy. 1T-TOUCH is known for its user friendly
program,
while being extremely fast, the
1T-TOUCH does not sacrifice quality; also it can produce any

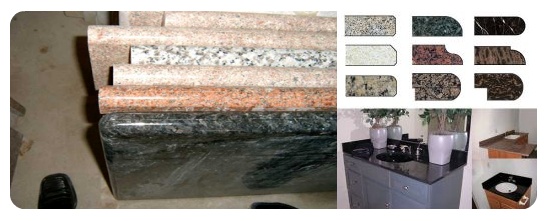

types of edge such as
polish Bull
Nose edge profiles on stone from 2 to 15 centimeters thick; also
capable of producing: Quarter and Half Bull Nose, double bevel
and many other special profiles as well as polish straight
profiles and bevels from 2 to 12 centimeters. It is constructed
for heavy-duty steel to eliminate vibration ensuring ultimate
surface finishes.
1T-TOUCH is the right machine for you if you are in the market
for an edge machine which is fast, reliable, rugged, and
accurate, that produces top quality edges
with reasonable, reduced price you must
contact UMT Tech sales department for quote.
1TOUCH TECHINCAL DATA
|
Working Size |
z3500 mm / 12 ft |
|
Spindle Head |
KW 2,2 / 3 HP |
|
Spindle Head Speed |
RPM 1400 / 2800 |
|
Installed Power |
KW 5,5 / 7.5 HP |
|
Pneumatic Power |
ATM 8 |
|
Pneumatic Cylinder |
6 |
|
Machine Weight |
3800 KG / 8,377.5 LB |
|
Machine Size |
6400x2800x2300 mm / 21x9x7.5 ft. |
Sambles
 |
