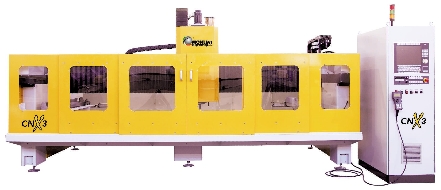

CNX3 is state
of the art CNC Working Center Manufactured by Monlevie
Engineering in Italy & exclusivity distribution by UMT Tech in
North America, UMT tech carefully chooses the product that it’s
presenting based on quality, reputation, & reasonable prices to
serve its customers in the best way possible, also UMT offers
sales & service all over USA & Canada.
CNX3 is
special designed for the American Market; it is a Monolithic
construction for easy installation and transport, Welded
structure high strength re-heated steel for dimensional
stability.
Stainless
steel
bolts, also Painting each machine is Certificated ISO
9001:2000 Anticorrosion treatment.
CNX3 is
heavily well built machine with weigh of 6000 KG for better
performance, precision, & rigidity.
CNX3 is
designed to suite the fabricators needs from a complicated
designs to simple fabrication matters such as flat polishing,
edge profiling, sink hole, etc.
Special
Features of CNX3 CNC working Center:
- Simple
programming without ISO code knowledge.
- Tagilio
Software.
- Large
color screen display Controller.
- 40
position automatic tool changer.
- 20HP
spindle.
-
All
axis movements on ball linear guides and ball screws.
-
USA
made suction cups.
-
7/24
after sale customer Service Online diagnostic.
- Comprehensive training program.
-
Sold, Installed, & serviced by UMT.
CNX3 Technical DATA
|
Max Machine Dimensions |
2290x5350x2300mm / 13x6.5ft |
|
Machine weight |
Kg 6000 / 13,228 LB |
|
Tools Magazine |
24 |
|
Working Area |
3000x1500mm / 10x5 ft. |
|
Working height |
80+370 mm / 0.27x1.2 ft. |
|
Number of Axis |
Three working Axis X-Y-Z. |
|
Axis Max Speed |
27.3 mt / min 89.5 ft/min |
|
Electro spindle |
15 KW / HP 20 |
Sambles
 |
